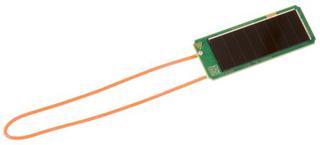

描述：STM330 EnOcean STM 330 ISM 频段发射器模块包含太阳能电池电源和校准的温度传感器。 可由板载太阳能电池、外部能量采集器或外部 3V 电池供电。 如果能量采集器无法供电，可将能量存储元件安装到桥接周期。 该模块提供用户可配置的循环唤醒。 唤醒后，如果测量的温度或设定点值显著变化或如果按下了入住按钮，将传输无线电电报。 如果无相关输入变化，则在用户可配置的唤醒次数之后，将发送冗余重新传输信号以宣布所有当前值。 板载太阳能电池能量采集器 温度传感器测量范围：0 至 40°C 工作频率：868.3MHz (STM 330 RS 786-3209)、315MHz (STM 330C RS 786-3218) 数据速率：125kbps 调制：ASK 辐射输出功率：STM 330：8dBm（典型 EIRP）、STM 330C 92dBμV/m（典型） 启动时间，带空能量存储，典型值 黑暗中 25°C 时初始工作时间：4 天（典型，如果能量存储充满的话） 每隔 100s 唤醒，平均每隔 1000s 传输 内部输入通道：温度传感器、LRN 按钮 外部输入通道：入住按钮、设定点刻度盘和 HSM 100，通过 20 引脚连接器 LED 传输指示器 EnOcean 设备配置文件：可配置 EEP：A5-02-05、A5-10-05、A5-10-03 以及带 HSM 100：A5-04-01、A5-10-10、A5-10-12 预先安装的伸缩或螺旋天线 尺寸：43 x 16 x 8mm 工作温度范围：- 20 至 +60°C 应用：房间操作面板与物联网 (IoT) 通信 ### Batteryless Wireless Applications EnOcean manufacture a range of transmitter and receiver products that operate in the 868MHz area of the ISM band. These devices are typically very efficient in terms of the power supply requirements and are used to send short messages.,The advantages of EnOcean technology are clearly illustrated through applications such as electrical control which eliminates the need for external wired connections and batteries.,Suitable for limitless applications where maintenance free and flexible switching needs to be installed without drilling, cabling and reconstruction costs.,Power in the transmitters is also created for "FREE" using energy harvesting techniques to create energy from the push button switches or solar power for its sensors transmitters.,Radio systems based around EnOcean technology can be formed into star, mesh, or hybrid topology networks, and are a good complement to ZigBee systems, typically in building automation and remote sensor applications.
